Javascript for Sound Art with P5.js

Nick Violi / GlobalGiving

dcjs 9.14.2017

1. Sound

So, like I said, I immediately started looking for a way to play around with some of these ideas and some of the code that Tero generously shared, and after a few hours of looking through the history of systems music and its most famous composers, I was reminded of a piece by the great John Cage called Variations I.

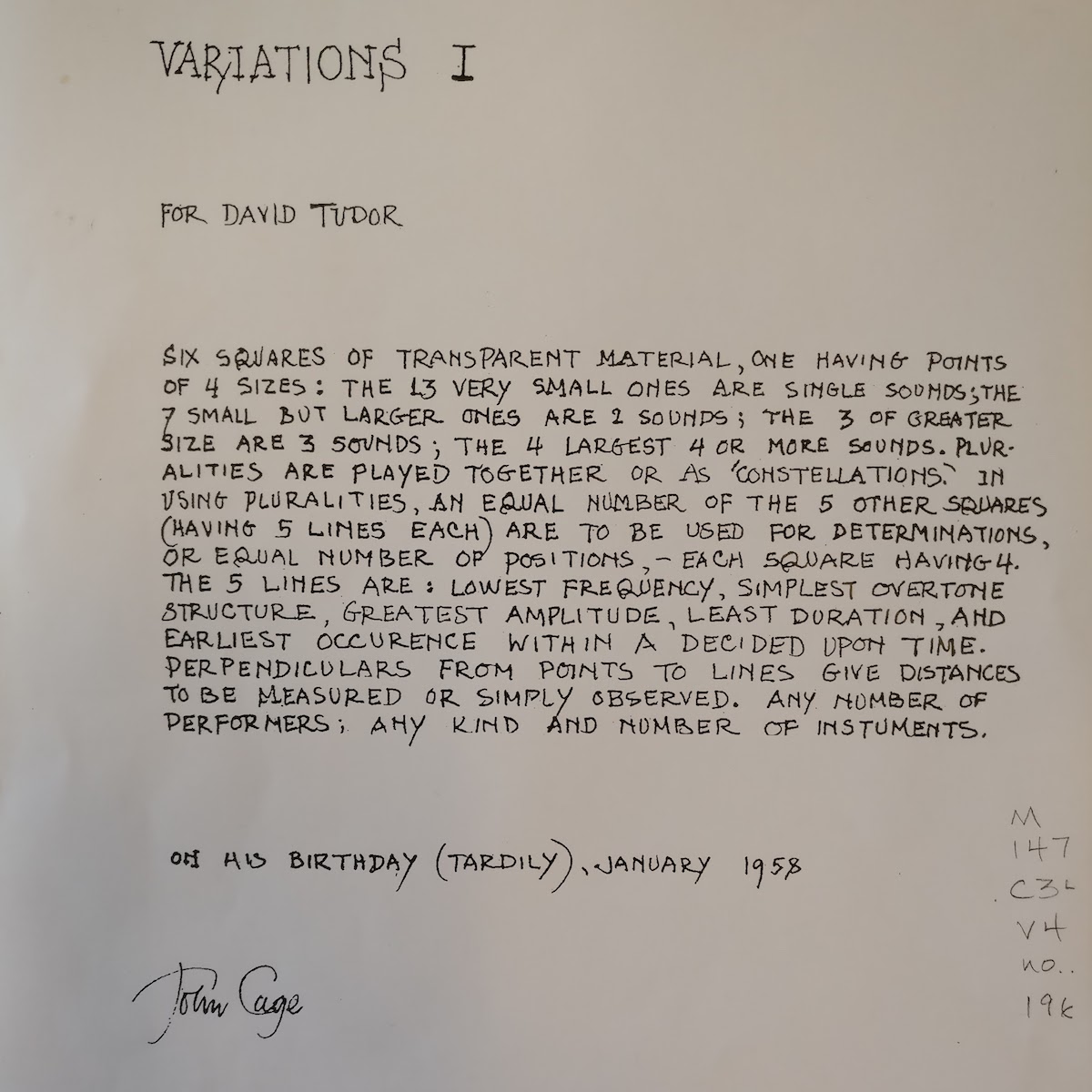

Here’s the entire score of the piece (I had to actually go to a library to get a look at it), and I don’t want you to read it because (a) making your audience read slides is a terrible way to give a presentation, and (b) because I had to read it like 100 times before I understood it -- as brilliant a composer as Cage was, I think his technical communications skills could have used some work.

But I wanted to show it to emphasize how short and concise it is, and yet how much complexity and possibility it contains


              document.getElementById(info).innerHTML = "Now playing";

              setTimeout(() => {
                  document.getElementById(info).innerHTML =
                    "Thank you for listening.";
                },
                (4 * 60 + 33) * 1000
              )

What do we need to build this piece?


            exports.samples = {
              '1st Violins': [
                {pitch: 'A#', octave: 3, file: 'Samples/1st Violins/1st-violins-sus-a%233.wav'},
                {pitch: 'A#', octave: 4, file: 'Samples/1st Violins/1st-violins-sus-a%234.wav'},
                //...
                {pitch: 'G', octave: 5, file: 'Samples/1st Violins/1st-violins-sus-g5.wav'},
                {pitch: 'G', octave: 6, file: 'Samples/1st Violins/1st-violins-sus-g6.wav'}
              ],
              '2nd Violins': [
                {pitch: 'A#', octave: 3, file: 'Samples/2nd Violins/2nd-violins-sus-a%233.wav'},
                //...
                {pitch: 'G', octave: 6, file: 'Samples/2nd Violins/2nd-violins-sus-g6.wav'}
              ],
              'Alto Flute': [
                {pitch: 'A#', octave: 3, file: 'Samples/Alto Flute/alto_flute-a%233.wav'},
                //...
              ],
              'Bass Clarinet': [
                {pitch: 'B', octave: 2, file: 'Samples/Bass Clarinet/bass_clarinet-b2.wav'},
                //...
              ],
              //etc.
            }

Just one catch


            $ cd Samples/Cello
            $ ls
            cello-a2.wav  cello-c2.wav  cello-d#2.wav  cello-f#2.wav
            cello-a3.wav  cello-c3.wav  cello-d#3.wav  cello-f#3.wav
            cello-a4.wav  cello-c4.wav  cello-d#4.wav  cello-f#4.wav
            cello-a5.wav  cello-c5.wav  cello-d#5.wav  cello-f#5.wav

Math to the rescue!

One octave change:

2 ✕ frequency = 2 ✕ speed

So m octave changes:

2^m ✕ speed

There are 12 equal-spaced notes per octave, so to move by n notes:

2^n/12 ✕ speed


            const OCTAVE = ['C','C#','D','D#','E','F','F#','G','G#','A','A#','B'];

            function noteToValue(note) {
              return note.octave * 12 + OCTAVE.indexOf(note.pitch);
            }

            function getNoteDistance(note1, note2) {
              return noteToValue(note1) - noteToValue(note2);
            }

            function getPlaybackRate(noteDistance) {
              return Math.pow(2, noteDistance / 12);
            }


              function preloadNote(p5,instrument,note) {
                const nearestSample = getNearestSample(instrument,note);
                const noteDistance = getNoteDistance(note,nearestSample);
                note.pitchAdjust = getPlaybackRate(noteDistance);

                note.sample = p5.loadSound(nearestSample.file, () => {
                  setupNote(note)
                });
              }

              function setupNote(note) {
                const env = new P5.Env();

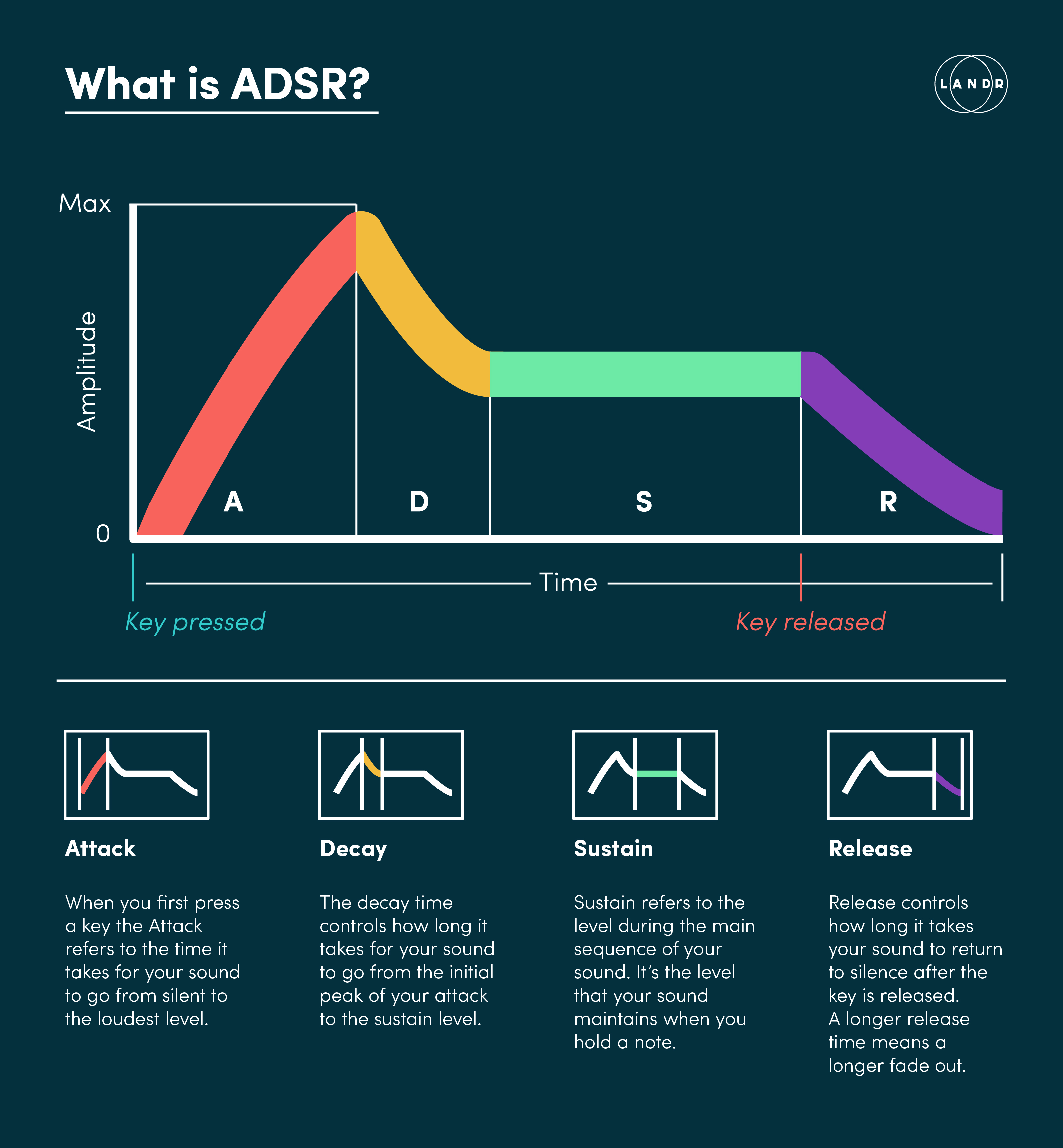

                //env.setADSR(attackTime, decayTime, susPercent, releaseTime);
                env.setADSR(0.001, 0.2, note.amplitude, note.duration);
                //setRange(attackLevel,releaseLevel)
                env.setRange(note.amplitude, 0);

                note.sample.amp(env);
              }

This function abstracts all the hard work of playing an arbitrary note: first, we get the sample nearest to the desired note, and calculate the pitch adjustment. Then we use the P5 library to load the sample into the user’s browser. The loadSound function accepts a callback function, which we use to set up some more details about the note: we make sure we’re not trying to play the note for longer than the sample’s duration, and then we create two more P5 objects and attach them to the note. The Envelope (P5.Env) makes it easier to define the note’s volume function, and the Amplitude (P5.Amplitude) lets us read the volume at any point during the sample’s playback (there’s not a one-to-one correspondence between the two because of the natural variations in the samples from being played by a human).


            function playNote(note,delay) {
              note.sample.play(delay,note.pitchAdjust);
              note.envelope.play(note.sample);
            }

2. Visuals

function setup() {

}

function draw() {
  ellipse(50, 50, 80, 80);
}

Instance Mode

function sketch(p5) {
  p5.setup = () => {}
  p5.draw = () => {
    p5.ellipse(50, 50, 80, 80);
  }
}

new p5(sketch);

Colors + Shapes


            p5.fill(r,g,b,[alpha]);
            p5.fill(#abcdef,[alpha]);
            p5.stroke('chartreuse');

            p5.colorMode(p5.HSB);
            p5.stroke(h,s,b,[alpha]);

            p5.noFill();
            p5.noStroke();

            p5.ellipse(x,y,w,[h]);
            p5.rect(x,y,w,h);
            p5.line(x1,y1,x2,y2);
            p5.triangle(x1,y1,x2,y2,x3,y3);

function sketch(p5) {
  p5.draw = () => {
    p5.stroke('black').noFill();
    p5.ellipse(25,25,40,30);
    p5.fill('lightblue');
    p5.rect(10,20,25,20);
    p5.stroke('red');
    p5.line(5,10,40,45);
  }
}

new p5(sketch);

Interaction


              p5.keyPressed = () => {
                //do something
              }
              p5.mouseClicked = () => {
                //do something
              }

function sketch(p5) {
  let hue = 0;
  p5.setup = () => {p5.colorMode(p5.HSB);}
  p5.draw = () => {
    p5.fill(hue, 100, 100);
    p5.rect(10, 10, 80, 80);
  }
  p5.mouseClicked = () => {
    hue = p5.random() * 360;
  }
}
new p5(sketch);

`p5.draw()` is a loop!

function sketch(p5) {
  let x = 0, y = 0;
  p5.setup = () => {p5.colorMode(p5.HSB)}
  p5.draw = () => {
    p5.background(255);
    x += 1.11;
    y += 1;
    p5.fill(x % 360,100,100);
    p5.ellipse(x % 100,y % 100,20);
  }
}
new p5(sketch);


            let instruments = utils.shuffle(Object.keys(library.samples));

            const pointSheet = {};
            pointSheet[instruments[0]] = {point: {x:86.76,y:45.68,size:1}};
            pointSheet[instruments[1]] = {point: {x:57.35,y:84.29,size:1}};
            //...
            pointSheet[instruments[13]] = {point: {x:84.97,y:76.45,size:4}};
            pointSheet[instruments[14]] = {point: {x:68.88,y:29.55,size:4}};

            const lineSheets = [
            [
              [{x:0,y:37.23},{x:100,y:51.53}],
              [{x:43.06,y:0},{x:37.75,y:100}],
              [{x:66.34,y:0},{x:44.27,y:100}],
              [{x:100,y:17.62},{x:36.40,y:100}],
              [{x:20.62,y:100},{x:0,y:55.72}]
            ],[
              [{x:71.43,y:0},{x:0,y:56.87}],
              [{x:0,y:29.18},{x:45.75,y:100}],
              [{x:0,y:54.32},{x:100,y:86.49}],
              [{x:0,y:63.56},{x:100,y:35.00}],
              [{x:97.84,y:0},{x:65.39,y:100}]
            ],
            //etc.


                  function getAttributeLines(point,sheet) {
                    utils.shuffle(sheet);

                    return {
                      lowestFreq: getLineDetails(point,sheet[0]),
                      overtone: getLineDetails(point,sheet[1]),
                      amplitude: getLineDetails(point,sheet[2]),
                      duration: getLineDetails(point,sheet[3]),
                      occurence: getLineDetails(point,sheet[4])
                    };
                  }

                  function getLineDetails(point,lineEnds) {
                    const [end1,end2] = lineEnds.slice();
                    const line = geom.getLine(end1,end2);

                    return {
                      end1,
                      end2,
                      distance: geom.distanceFrom(point,line),
                      intersection: geom.perpindicularIntersectionPoint(point,line)
                    };
                  }


                //returned object forms the basis of the `note`
                function getNoteAttributes(instrument,point,sheet) {
                  const lines = getAttributeLines(point,sheet);

                  const [low,high] = audioUtils.getSampleRange(instrument);
                  const noteVal =
                    low + (high - low) * lines.lowestFreq.distance / 100;
                  const lowestFreq = audioUtils.valueToNote(noteVal);

                  return {
                    lines, //contains geometric info; other properties contain all the note info
                    pitch: lowestFreq.pitch,
                    octave: lowestFreq.octave,
                    delay: lines.occurence.distance,
                    amplitude: lines.amplitude.distance / 100,
                    duration: lines.duration.distance / 10
                  };
                }


            p5.draw = () => {
              p5.background(colors.background);

              let delay = 0;
              Object.keys(score).forEach(inst => {
                const point = score[inst].point;
                p5.strokeWeight(point.size * 4);
                //draw a circle for the instrument:
                p5.ellipse(normalize(point.x),normalize(point.y),point.size * 4);

                score[instrument].notes.forEach(note => {
                  //draw the colored lines to visualize the note:
                  drawNote(instrument,note);
                  //draw the attribute lines:
                  drawAttributeLines(note);

                  //play the note:
                  audio.playNote(note,delay);
                  delay += note.duration;
                });
              }
            });

3. Animate the piece


            function setupNote(note) {
              const env = new P5.Env();

              //env.setADSR(attackTime, decayTime, susPercent, releaseTime);
              env.setADSR(0.001, 0.2, note.amplitude, note.duration);
              //setRange(attackLevel,releaseLevel)
              env.setRange(note.amplitude, 0);

              note.sample.amp(env);

              //an addition:
              const amp = new P5.Amplitude();
              amp.setInput(note.sample);
              note.curAmplitude = amp;
            }


              function drawNote(instrument,note) {
                Object.keys(note.lines).forEach(noteAttribute => {
                  //vary the weight based on the sample's amplitude
                  p5.strokeWeight(note.curAmplitude.getLevel() * 100);
                  //color it accordint to its pitch
                  p5.stroke(getNoteHueValue(note),100,100,note.amplitude);

                  drawLine(score[instrument].point,note.lines[noteAttribute].intersection);
                });
              }

              function getNoteHueValue(note) {
                return 371 / (1 + Math.pow(Math.E,(56 - audioUtils.noteToValue(note)) / 10)) - 4;
              }

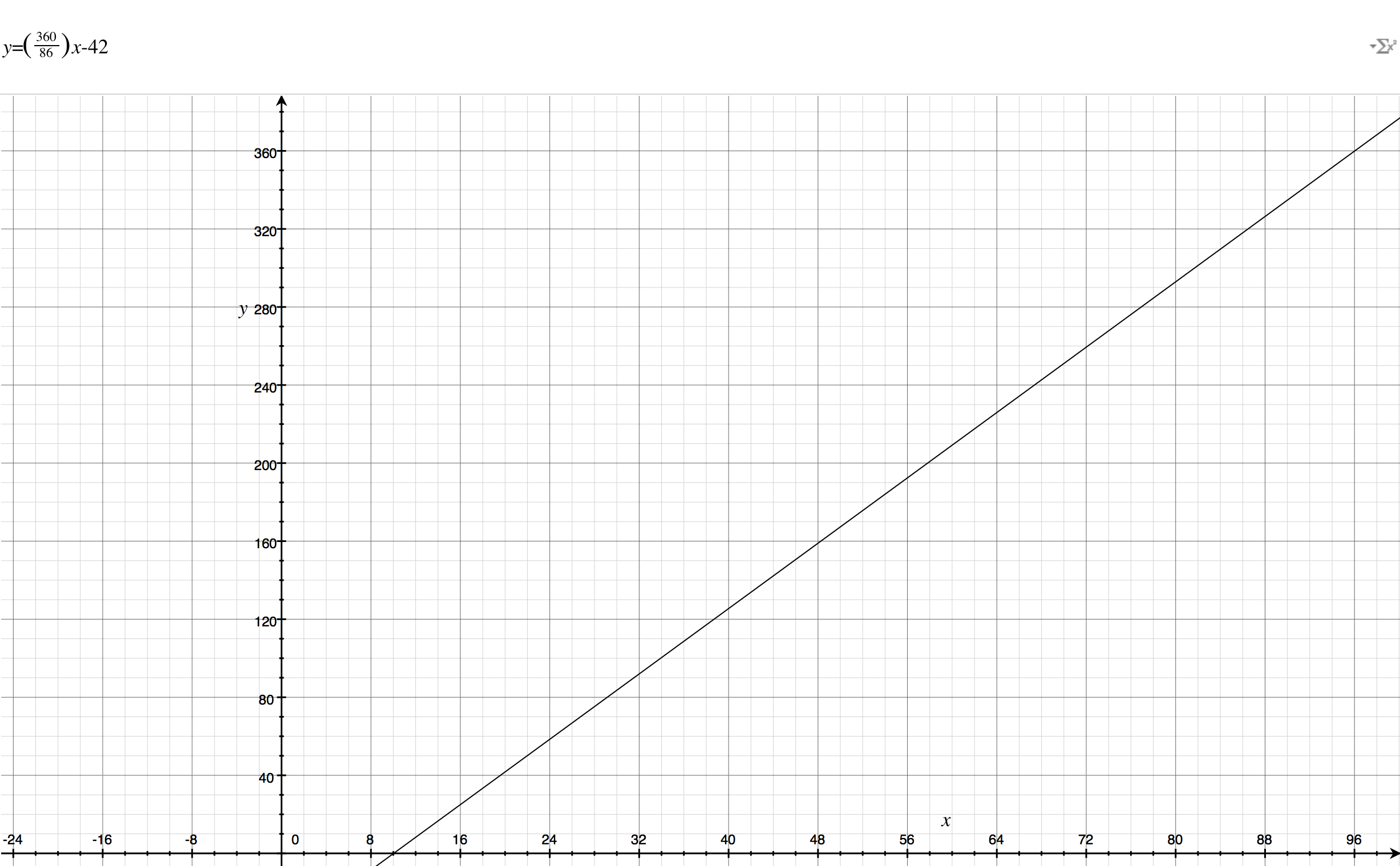

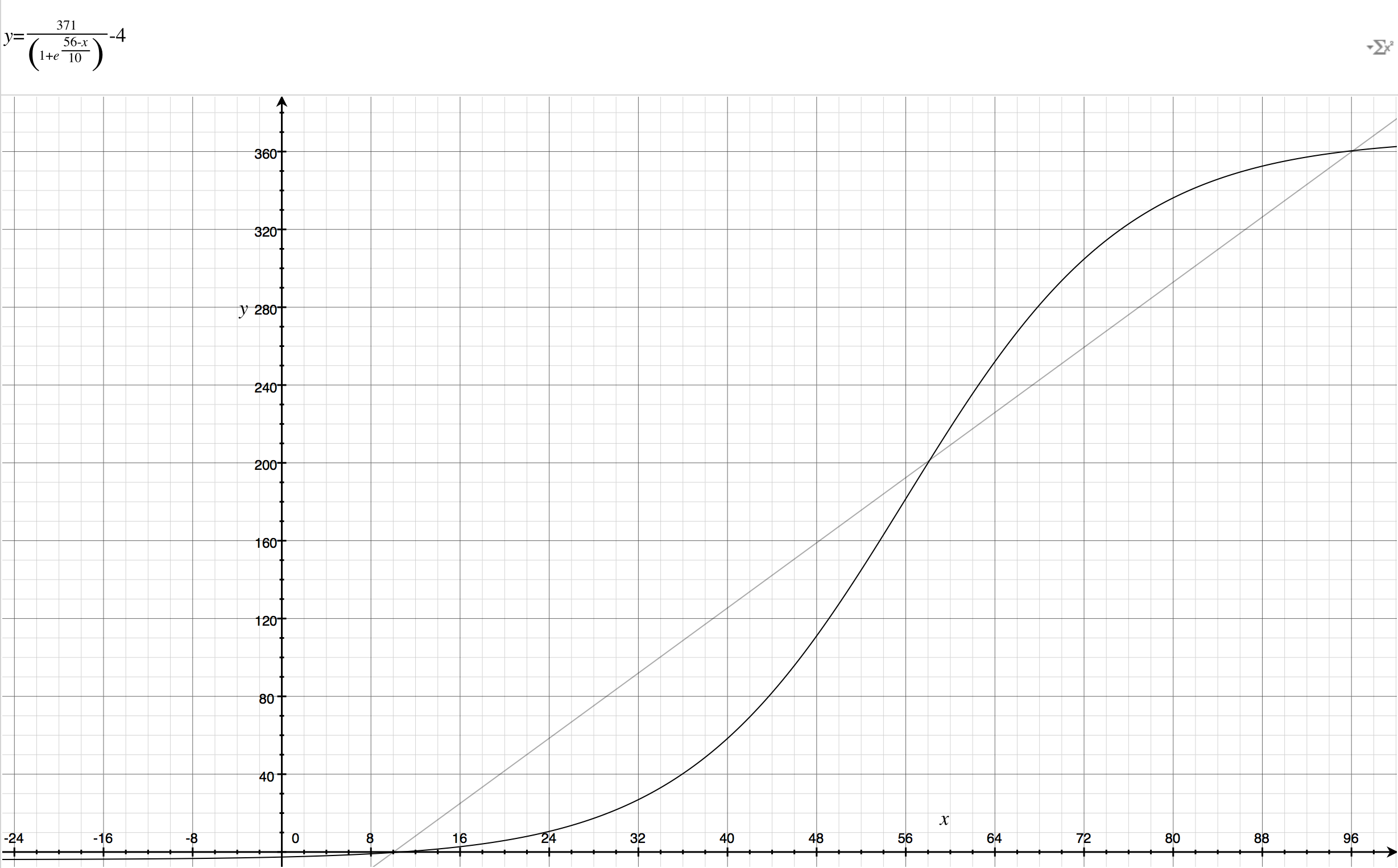

Bonus Math Detour: Sigmoid Curve


            function drawLiveScore() {
              Object.keys(score).forEach(instrument => {
                score[instrument].notes.forEach(note => {
                  if (note.isActive) {
                    drawNote(instrument,note);
                  }
                });
              });
            }

Phrase, Part, Score


            function getPhrase(instrument,note,pattern) {
              return new P5.Phrase(
                instrument + note.pitch + note.octave
                (time,rate) => {
                  playNote(note,time,rate);
                },
                pattern
              );
            }


              function playScore(p5,score) {
                const playPart = new P5.Part(16);
                playPart.loop().setBPM(10);

                Object.keys(score).forEach(instrument => {
                  score[instrument].notes.forEach(note => {
                    setTimeout(() => {
                        playPart.addPhrase(getPhrase(instrument,note,getPattern()));
                      }, note.delay * 1000
                    );
                  });
                });

                playPart.start();
              }

              const zeroPattern = [0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0];
              let noteOffset = 0;
              function getPattern() {
                const pattern = zeroPattern.slice();
                pattern[noteOffset++ % 16] = 1;
              }
